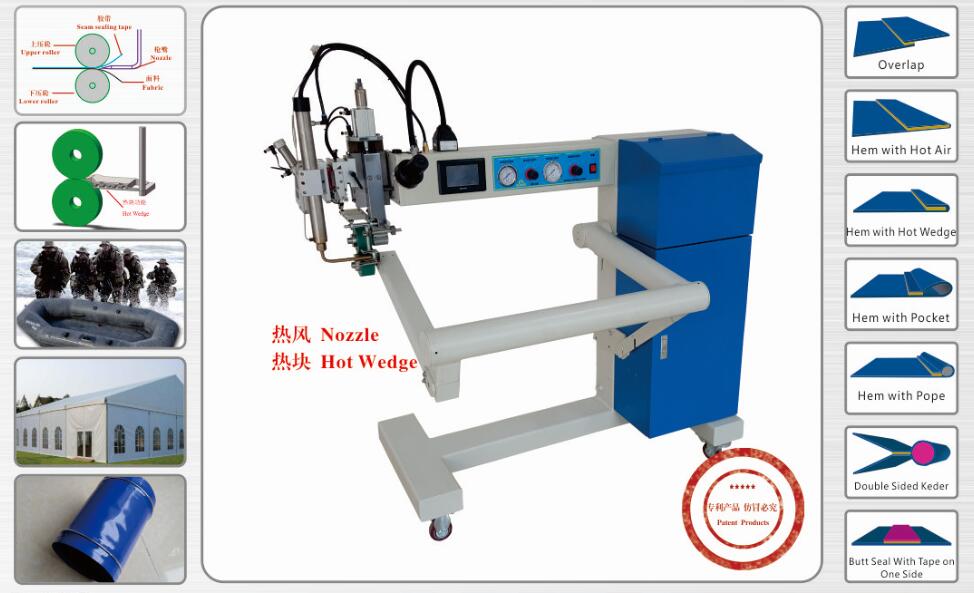

RF-A12 Hot air welding for hem welding and overlap welding
RF-A12 Hot air welding for hem welding and overlap welding
技術參數 Technical Parameter | |
| 型號 Model | RF-A12 |
| 功率 Power | 3000W |
| 熱風溫度 Heat control | Up to 700°C for hot air |
| 熱塊溫度 Heat control | Up to 450°C for hot wedge |
| 熱壓溫度 | Up to 250°C |
| 速度 Speed | 1-18m/min |
| 壓縮空氣 Pressrue | 0.35-0.5M |
| 壓輪寬度 Roller width | 20/30/40/50mm |
| 槍嘴寬度 Nozzle width | 20/30/45mm |
| 可選功能 Option Function | 熱塊功能 Hot Wedge |
| 機器尺寸 Dimension | 1500*750*1600mm |
| 凈重 Net weight | 245kg |
RF-A12特點：
1超大操作空間,廣泛應用于網格PVC面料的焊接,如篷房,充氣艇,廣告橫幅等
2.具有熱風和熱塊兩種功能
3.采用PLC可編程,觸摸式數字顯示
4溫度自動控制,穩定性能高,溫度上限報警設計,保護發熱絲
5自動補償虛位,自動微退,減少壓帶空白
6雙腳踏控制,操作舒適,適宜長時間操作
7可連續24小時工作
8獨特發熱管結構,進風經過濾,絕無水分和油分
9超強大的扭動力設計
Features of rF-A12：
1. Bigger operation space, widely used in coated Pvc fabric welding, such as tent house, inflatable boat/water tank, banner etc
2. With both hot air and hot wedge function
3. Editable PLC control, touch screen display
4. Auto temperature control with warning device for the up limit temperature
5. Auto compensation and reverse
6.Double pedals control
7.It could work up to 24 hours
8.Blowing-in hot air is filtrated without any water and oil
9. Super strong torsional dynamic design
